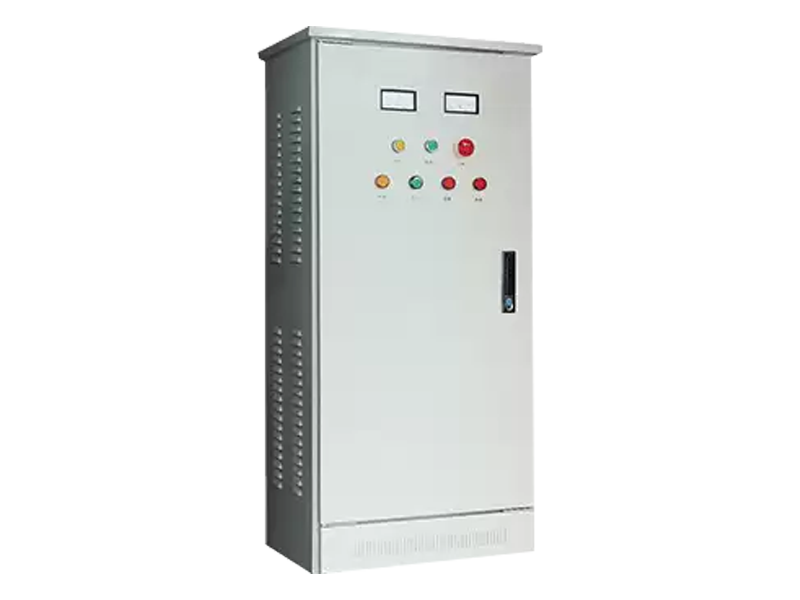

XRQ Soft Start Cabinet

Base voltage 25 ~ 75% which is adjustable.

The current limit range is adjustable from 1.0 to 4.5 times the rated current.

Starting time is adjustable from 0.5 to 240 seconds.

Output signal: switch contact, 30VDC or 220VAC 5A.

Applicable motor: 5.5KW ~ 500KW three-phase asynchronous motor.

Start mode: voltage ramp start, current limit start, jump start.

Stop mode: stop freely immediately, ramp stop time is adjustable from 1 to 480 seconds; input signal: switch contact.

  • XRQ Soft Start Cabinet

Product Description

General-purpose soft-start control cabinet is based on the domestic brand soft starter or imported brand soft starter as the main control element and is equipped with a main circuit incoming circuit breaker and bypass contactor. It has short-circuit protection, overload protection, over-current and input shortage. Phase, output phase failure protection function. Control device for single motor or multiple motors that can realize multiple protection. Including universal type, 1 tow 2, 1 tow 3, 1 tow 4, life pump 1 with 1 standby, dual-use 1 standby soft start cabinet. The soft starter can be configured with Chinese brands or imported brands Schneider, ABB, Siemens and other series soft starters.

Product Characteristics And Application

· Starting performance is far to frequency-sensitive varistor, oil-immersed varistor, cast iron resistance and other starters;
· Soft start, the starting current is small, about 1.3 times the rated current of the motor;
· Can be started continuously 5-10 times;
· The starting process is smooth, no mechanical stress impact on the equipment, which can extend the life of the mechanical equipment and electricity;
· It can be started with low voltage, when the grid voltage is lower than 10% of the rated voltage of the motor, it can be started smoothly;
· Wide applicability, can be applied to the soft start of the winding motor under any load condition, especially suitable for heavy load start;
· It has multiple protection functions such as start timeout, pressure loss, over-travel, over-temperature, etc .;
· Automatic heating function in cold areas;
